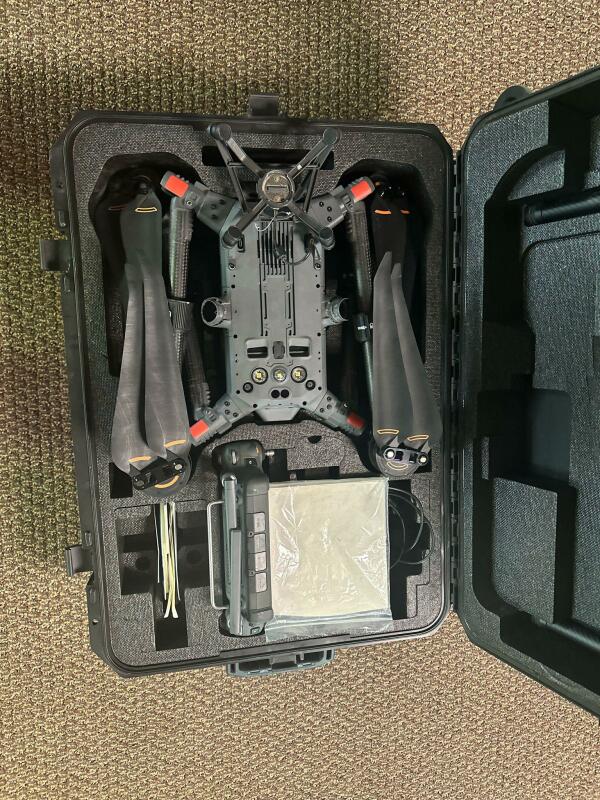

DJI Matrice 350 RTK Drone
Key Features:
Max Flight Time: ~55 minutes (no payload)
Max Payload Capacity: 2.7 kg (5.95 lbs)
Operating Altitude: Up to 7,000 m (23,000 ft)
Wind Resistance: 12 m/s (27 mph)
Protection Rating: IP55 (dust and water-resistant)
GNSS/RTK Positioning Accuracy:
Horizontal: ±0.1 m (with RTK)
Vertical: ±0.1 m (with RTK)
Video Transmission: DJI O3 Enterprise, up to 20 km (12.4 miles)
Operating Temperature: -20°C to +50°C (-4°F to 122°F)
Dual-Battery System: Hot-swappable (requires TB65 Intelligent Batteries)
Weight (without batteries): Approx. 3.77 kg (8.31 lbs)

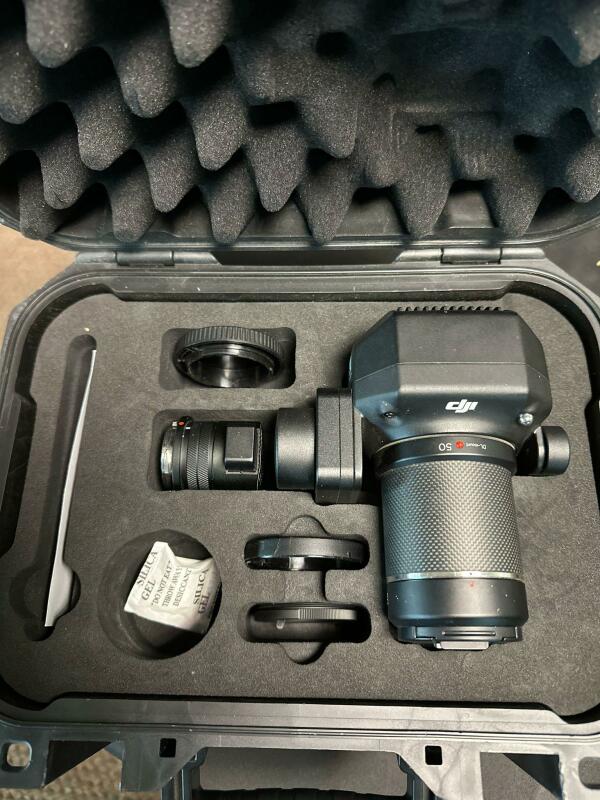

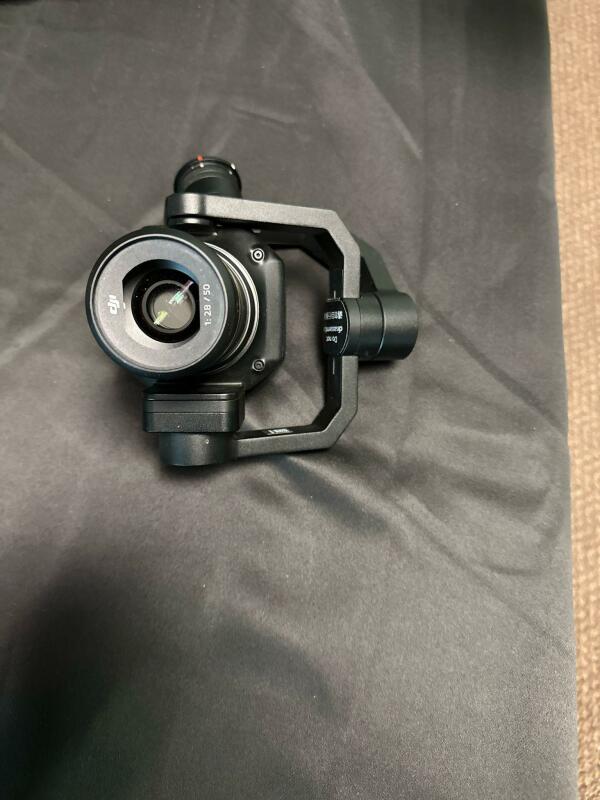

DJI Zenmuse P1 Full-frame Camera
Key Features:
Sensor Size: Full-frame CMOS sensor (35.9 × 24 mm)
Resolution: 45 MP (8192 × 5460 pixels)
Pixel Size: 4.4 µm
ISO Range: 100–25,600
Shutter: Mechanical (Global Shutter), max speed 1/2000 s
Capture Speed: Minimum photo interval of 0.7 s
Horizontal Accuracy: 3 cm (with RTK at 3 cm GSD)
Vertical Accuracy: 5 cm (with RTK at 3 cm GSD)
IP Rating: IP4X (dust resistant)
Operating Temperature: -20°C to +50°C (-4°F to 122°F)
Weight: Approx. 800 g (1.76 lbs)
Dimensions: 198 × 166 × 129 mm
DJI DL 50mm F2.8 LS ASPH Lens
Key Features:
Focal Length: 50 mm
Aperture: f/2.8–f/16
Field of View (FOV): 46.8°
Minimum Focus Distance: 0.93 m
Lens Mount: DJI DL Mount (for Zenmuse P1)
Mechanical Shutter Speed: Up to 1/2000 s
Weight: Approx. 182 g (0.4 lbs)
Ideal for: High-precision mapping, detailed aerial surveys, inspection tasks
DJI BS65 Intelligent Battery Charging Station
Key Features:
Compatibility: DJI TB65 Intelligent Batteries
Charging Capacity: Charges up to 8 batteries simultaneously
Charging Modes: Fast Charge, Standard Charge, Storage Charge, and Transportation Mode
Battery Management: Monitors battery health, extends battery life, ensures optimal performance
Input Voltage: 100–240 V, 50/60 Hz
Charging Temperature: -20°C to 40°C (-4°F to 104°F)
Dimensions: Compact, rugged, portable design ideal for field operations
Interface: Built-in LCD display for charging status and battery information
DJI TB65 Intelligent Flight Battery
Key Features (per battery):
Battery Type: Li-ion Polymer
Capacity: 5880 mAh
Voltage: 44.76 V
Energy: 263 Wh
Operational Temperature: -20°C to 50°C (-4°F to 122°F)
Charging Temperature: -20°C to 40°C (-4°F to 104°F)
Battery Life: ~400 charge cycles
Weight (per battery): Approx. 1.35 kg (2.98 lbs)
Features: Intelligent battery management system, self-heating capability, hot-swappable on Matrice 350 RTK
Package includes,
1 x DJI Matrice 350 RTK drone
1 x DJI Zenmuse P1 Full-frame Camera
1 x DJI DL 50mm F2.8 LS ASPH Lens
1 x DJI BS65 Intelligent Battery Charging Station
4 x DJI TB65 Intelligent Flight Battery
